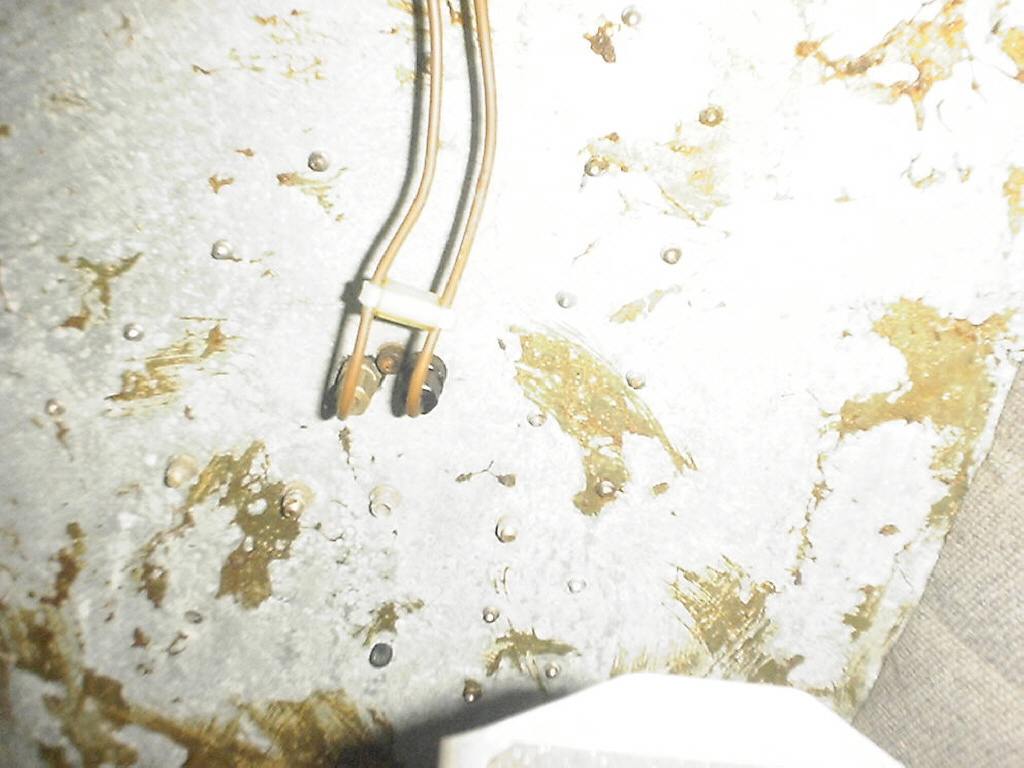

Check fuel primer
lines at firewall
for leaks.

This concludes the Cabin Group Inspection.

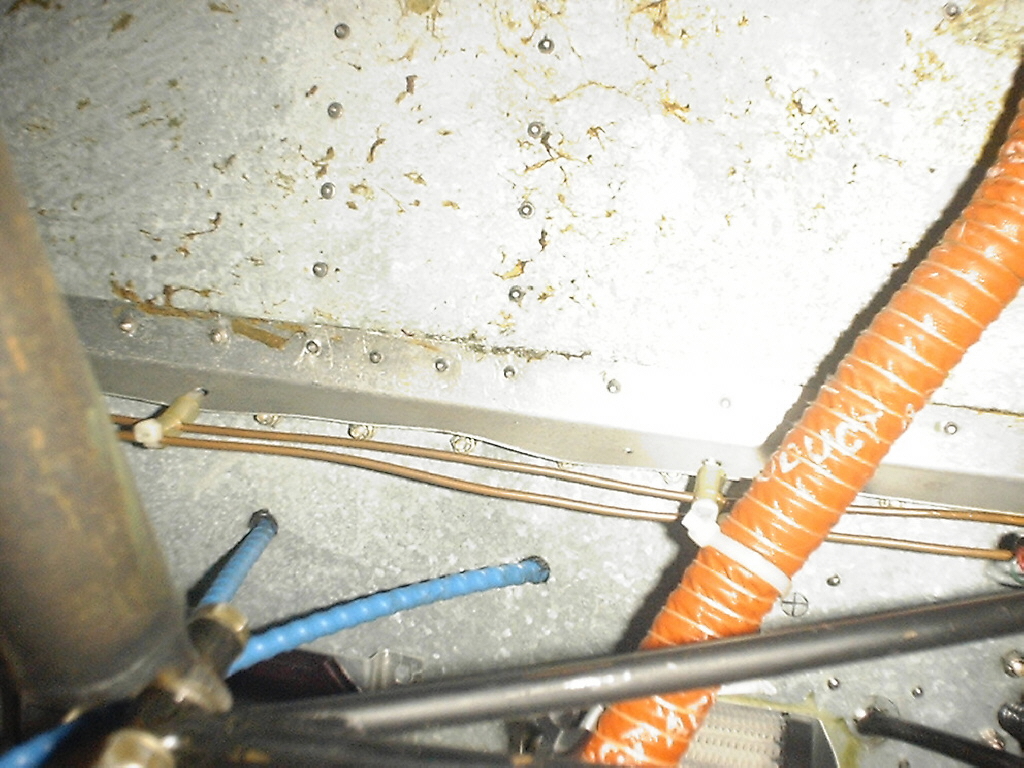

Inspect all rivets at fuselage attachment points.

CABIN GROUP

30.

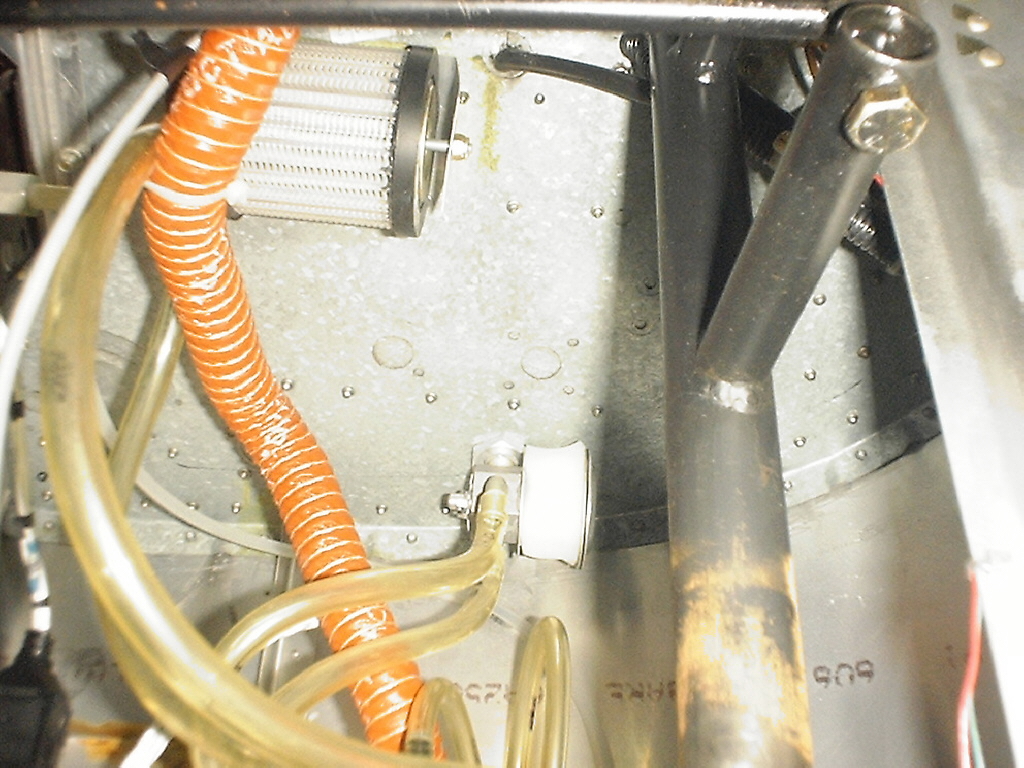

Inspect the aft side of the firewall from inside of the cabin for cracks around any rivets. In case of repair, see Zenair service bulletin No. 00-03, Sections B and C.

A.

B.

C.

Pay close attention to rivets at nose gear center channel.
