ZODIAC Specifications & Performances

ZODIAC 650 B

PERFORMANCE

(AT GROSS)

CONTINENTAL 0-200       (100 HP)

SPECIFICATIONS (STANDARD)

 CONTINENTAL 0-200   (100 HP)

CRUISE SPEED (TAS)

130 MPH

CABIN WIDTH

44 INCHES

STALL NO FLAPS (LSA)

51 MPH

EMPTY WEIGHT

770 LBS

STALL WITH FLAPS

44 MPH

GROSS WEIGHT

1320 LBS

RATE OF CLIMB

1,000 FPM

USEFUL LOAD

550 LBS

FUEL CAPACITY

30 GAL

DESIGN LOAD (ULT)

+6/-3 G
ENDURANCE

5.5 HRS

 SERVICE CEILING

12,000 FT

RANGE (MILES)

715 MILES

WING AREA

132 SQ. FT

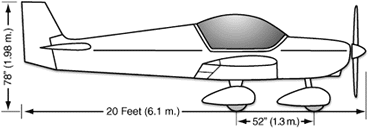

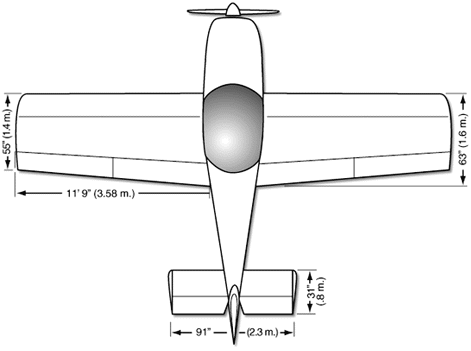

Click on above drawings to enlarge



























































Empty weight based on a basic VFR ZODIAC XL aircraft (no options). Items with * in equipment list are options

Performance figures given at standard atmosphere, sea level, no wind, unless otherwise indicated. All technical data,

specification and performance figures subject to change without notice.

Range and endurance figures are quoted with no fuel reserve.
* TAS is indicated airspeed corrected for temperature and altitude.  The corrections are approximate. 08/08
